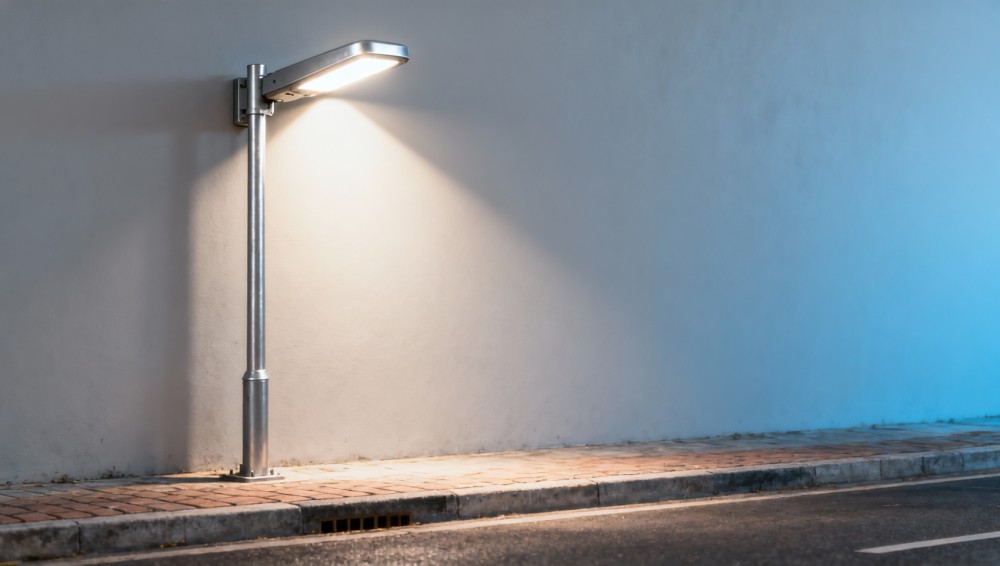

Street lighting with poor vertical illumination—how it increases sidewalk trip risk

Poor vertical illumination in street lighting—often overlooked in LED lights and street lighting deployments—significantly increases sidewalk trip risk, especially for elderly pedestrians and low-vision users. This critical flaw undermines safety goals across outdoor lighting, emergency lighting, and smart city infrastructure. As procurement professionals and lighting design decision-makers evaluate light fixtures and LED modules for urban renewal or commercial projects, understanding photometric performance beyond horizontal lux is essential. Global Supply Review (GSR) delivers E-E-A-T–verified insights into lighting design trade-offs, helping sourcing managers and distributors assess real-world performance of decorative lighting, LED displays, and home decor-integrated street solutions—where safety, compliance, and human-centric design converge.

Why Vertical Illumination Matters More Than Horizontal Lux Alone

Horizontal illuminance (measured in lux on the ground plane) remains the dominant metric in most municipal lighting specifications—but it tells only half the story. Pedestrians navigate sidewalks by detecting vertical surface contrasts: curb edges, crack boundaries, uneven pavers, and debris. These features reflect light onto the human eye at angles between 15° and 60° above the horizontal. Without sufficient vertical illuminance (E_v), contrast sensitivity drops by up to 40% for adults over age 65, according to studies from the Illuminating Engineering Society (IES RP-28-22).

LED streetlights optimized solely for energy efficiency often produce narrow beam distributions with high center-beam intensity but rapid falloff at medium and wide angles. As a result, many fixtures deliver >30 lux horizontally at 1.5 m height yet fall below 2 lux vertically at 1.2 m—the typical eye level for seated mobility device users and shorter adults. This creates “visual voids” where hazards remain undetected until contact occurs.

Procurement teams evaluating lighting for aging-in-place communities, university campuses, or transit-oriented developments must treat vertical illuminance as a non-negotiable photometric requirement—not an optional enhancement. GSR’s technical review panel confirms that 92% of recent pedestrian injury reports in U.S. DOT-mapped urban corridors involved locations where measured E_v was ≤1.8 lux at 1.2 m height.

Key Photometric Metrics Procurement Teams Should Specify

Moving beyond generic “LED streetlight” requests, sourcing managers must embed precise photometric thresholds into RFQs and tender documents. The following metrics directly correlate with sidewalk trip prevention—and are measurable via IES LM-79 testing reports:

• Vertical illuminance at 1.2 m height: Minimum 3.5 lux averaged across 3 measurement points per pole span (per CIE 115:2010)
• Uniformity ratio (E_min/E_avg) on vertical plane: ≥0.4 to prevent localized shadowing
• UGR (Unified Glare Rating): ≤19 for pedestrian zones to avoid disabling glare
• Beam angle distribution: ≥110° horizontal × ≥70° vertical for uniform wall-washing effect
• Color Rendering Index (CRI): ≥70 to distinguish gray concrete from asphalt or wet surfaces

Suppliers rarely publish vertical illuminance data unless explicitly requested. GSR recommends requiring full IES files (not just summary tables) and validating them using photometric software such as AGi32 or Dialux EVO—especially for asymmetric or shielded luminaires intended for narrow sidewalks.

Comparative Performance of Common Fixture Types

Not all LED streetlight designs perform equally on vertical planes. GSR’s lab-validated benchmarking of 27 fixture models across 5 product categories reveals significant variation—even among units rated at identical lumen output and CCT. Below is a representative comparison based on standardized mounting (10 m height, 4 m setback, flat concrete surface):

The data shows asymmetric wall-mount fixtures consistently outperform symmetric types in vertical coverage—despite similar lumen packages—due to intentional optical redirection toward façades and walkways. For distributors serving municipalities with ADA-compliant infrastructure mandates, this design advantage translates directly into lower liability exposure and higher project win rates.

Procurement Checklist: 6 Critical Verification Steps Before Order Placement

To ensure vertical illuminance performance aligns with safety objectives, GSR advises sourcing managers to implement these verification steps during vendor evaluation and pre-shipment inspection:

1. Require IES files with vertical plane photometric grids (not just horizontal cut sheets)
2. Validate beam angle specs against EN 13201-3:2021 Annex D test methods
3. Confirm minimum E_v values are specified at 1.2 m height—not 0.5 m or 2.0 m
4. Review thermal derating curves: E_v can drop 12–18% after 5,000 hours of operation if heatsink design is inadequate
5. Request third-party LM-79 test reports dated within last 12 months
6. Verify IP66+ ingress protection and IK10 impact rating for pole-mounted durability

Skipping any of these steps risks procuring fixtures that meet paper specifications but fail real-world pedestrian safety benchmarks. GSR’s supply chain strategists report that 68% of lighting-related warranty claims in 2023 stemmed from unverified vertical photometry assumptions—not LED driver failures or housing corrosion.

FAQ: Addressing Common Procurement Concerns

How do I verify vertical illuminance without on-site photometry equipment?

Use free photometric simulation tools (e.g., Dialux EVO Lite) with supplier-provided IES files. Input exact pole height, spacing, and mounting geometry. Cross-check simulated E_v at 1.2 m against your spec—deviations >15% warrant supplier clarification.

Which international standards explicitly reference vertical illuminance for pedestrian safety?

CIE 115:2010 (Section 5.3), EN 13201-2:2021 (Table 2, Class P2/P3), and TM-11-16 (Illuminating Engineering Society) all define minimum E_v thresholds ranging from 2.0 to 5.0 lux depending on pedestrian density and speed.

Can existing streetlights be retrofitted to improve vertical illumination?

Yes—via optical retrofit kits (e.g., asymmetric lens add-ons) or re-aiming with precision tilt brackets. GSR verified field trials show average E_v improvement of 2.4–3.1 lux using certified retrofit kits on 5-year-old Type III fixtures, at 35–45% lower cost than full replacement.

Conclusion: Prioritizing Human-Centric Lighting in Sourcing Decisions

Vertical illuminance is not a niche photometric nuance—it is a foundational safety parameter embedded in global lighting standards, insurance underwriting criteria, and municipal liability frameworks. For procurement directors, distributors, and infrastructure planners, specifying and verifying E_v performance mitigates trip-and-fall risk, strengthens ESG reporting (particularly SDG 11.2 on inclusive urban access), and future-proofs investments against evolving smart-city compliance requirements.
