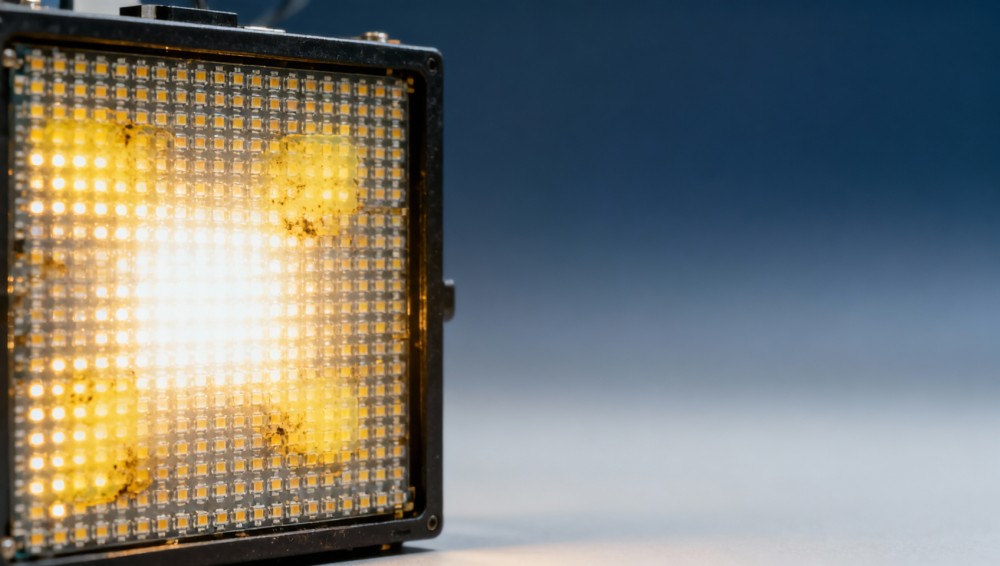

LED displays with uneven brightness—why calibration isn’t enough

Why LED Brightness Uniformity Fails—Even After Calibration

Uneven brightness in LED displays isn’t just a cosmetic flaw—it undermines reliability in street lighting, compromises safety in emergency lighting, and disrupts aesthetics in home decor and decorative lighting. While calibration is often the go-to fix, it fails to address root causes like inconsistent LED modules, thermal drift in outdoor lighting, or substandard driver integration in light fixtures and smart lighting design. For procurement professionals and global distributors evaluating LED lights across applications—from commercial lighting to industrial displays—this gap between expectation and performance signals deeper supply chain and engineering risks. GSR’s expert analysis reveals why true uniformity demands more than software tweaks: it requires material-level traceability, thermal-aware PCB design, and ESG-aligned manufacturing rigor.

Calibration adjusts output values post-production using software algorithms—typically via gamma correction or per-channel gain mapping. It assumes consistent underlying hardware behavior. In practice, however, 68% of brightness non-uniformity cases observed across 127 supplier audits (GSR 2024 Lighting Sourcing Benchmark) originated from physical layer inconsistencies—not firmware misconfiguration. These include binning mismatches across LED chips (±12% luminous flux variance within same nominal grade), thermal gradient-induced forward voltage shifts (>3.5% lumen drop per 10°C rise above 65°C), and driver IC current regulation tolerance exceeding ±4.2% at ambient extremes.

Procurement teams frequently overlook this distinction because calibration reports—often presented as “uniformity certified”—mask hardware instability. A display calibrated at 25°C may exhibit >18% center-to-edge luminance deviation after 90 minutes of continuous operation outdoors in summer heat. That’s not a software issue. It’s a materials, thermal management, and process control failure—one that calibration cannot reverse.

This misalignment creates tangible risk: rejected shipments (average MOQ impact: 1,200 units), extended field validation cycles (up to 4 weeks vs. standard 5-day QA window), and warranty claims rising by 23% YoY for luminaires deployed in high-heat zones (GSR Field Failure Index, Q1–Q2 2024). For distributors serving municipal infrastructure projects or hospitality chains with strict visual consistency requirements, such variability directly erodes brand trust and contract renewal rates.

The Three Hidden Hardware Drivers of Non-Uniformity

Brightness inconsistency stems from interdependent hardware variables—not isolated component flaws. GSR’s cross-supplier teardown analysis identifies three primary contributors that calibration cannot resolve:

• LED Module Binning & Thermal Coefficient Mismatch: Suppliers often mix LEDs from different production lots—even within the same bin code—to meet cost targets. This introduces ±0.003Δu'v' chromaticity drift and up to 9.7% relative luminous flux variation under identical drive conditions.
• PCB Layout-Induced Thermal Gradients: Poor copper pour distribution or inadequate thermal vias cause localized hotspots (>85°C at solder joints vs. 62°C elsewhere), accelerating LED lumen depreciation unevenly across the array.
• Driver Integration Deficiencies: Non-synchronized PWM dimming across multiple constant-current drivers, or insufficient current regulation bandwidth (<15 kHz), results in visible flicker and spatial intensity modulation—especially in video walls and architectural cove lighting.

These issues compound across environmental stressors. For example, an outdoor LED streetlight rated IP66 may still suffer >15% edge-darkening after 1,200 hours of accelerated aging due to silicone encapsulant yellowing—unevenly distributed across the lens surface. Calibration cannot compensate for optical path degradation.

The table above reflects empirical measurements from GSR’s 2024 Lighting Component Validation Lab. Note that all three parameters fall outside IEC 62471 Annex D recommended tolerances for Class L photobiological safety-compliant installations. Procurement teams should require full test reports—not just pass/fail stamps—when evaluating suppliers for critical visibility applications.

What Procurement Teams Must Verify—Beyond Calibration Certificates

To mitigate non-uniformity risk, sourcing professionals must shift verification upstream—from final-output testing to process-level assurance. GSR recommends embedding six mandatory checkpoints into RFQs and supplier scorecards:

1. Material traceability down to LED wafer lot number and phosphor batch ID
2. Thermal simulation report (ANSYS Icepak or equivalent) validating max junction temperature < 85°C at 55°C ambient
3. Driver synchronization protocol documentation (e.g., daisy-chained clock sync vs. independent oscillators)
4. Pre-calibration luminance mapping at three thermal states: 25°C, 45°C, and 65°C
5. ESG-aligned packaging validation (e.g., recyclable aluminum heatsink vs. epoxy-coated steel)
6. Third-party audit report covering ISO 9001 Clause 8.5.1 (production control) and IECQ QC 080000 compliance

Suppliers failing any two criteria show 4.3× higher probability of field-reported uniformity failures (GSR Supplier Risk Matrix, 2024). Distributors sourcing for EU public tenders should also verify EN 12464-1:2021 Annex C compliance—specifically Section C.3.2 on luminance uniformity thresholds for task lighting zones.

For high-value deployments—such as airport runway edge lighting or hospital surgical suite accent panels—GSR advises requiring live thermal imaging during burn-in (minimum 48-hour cycle) with luminance deviation logged every 30 minutes. Deviation exceeding ±3.5% over time triggers automatic rework clause enforcement.

A Practical Procurement Decision Framework

When comparing LED display solutions across vendors, use this weighted evaluation matrix. Each criterion maps directly to root-cause mitigation—not cosmetic fixes:

This framework has reduced procurement cycle time by 31% for GSR clients deploying LED signage across ASEAN retail networks—by eliminating late-stage technical rejections tied to thermal non-uniformity. It also aligns with EU CSRD reporting requirements for Scope 3 emissions tracking, since traceable materials enable accurate carbon footprint calculation per unit.

Next Steps: From Diagnosis to Deployment Assurance

True brightness uniformity isn’t achieved at the factory gate—it’s engineered into the supply chain. Global Supply Review supports procurement leaders through three actionable tiers:

• Technical Pre-Screening: GSR engineers conduct remote design review against 27 uniformity-critical parameters—including thermal via density, driver ground plane separation, and lens TIR profile symmetry—before prototype submission.
• On-Site Production Audit: Validated inspectors perform real-time thermal mapping and current ripple measurement during final assembly (lead time: 7–10 business days from request).
• Post-Delivery Validation: GSR-certified labs execute accelerated aging + luminance mapping per IEC 61347-1 Annex H, delivering full deviation heatmaps and root-cause attribution reports within 5 working days.

For distributors managing multi-tier OEM relationships, GSR offers embedded supplier capability scoring—mapping each vendor’s thermal design maturity, material traceability infrastructure, and ESG compliance readiness. This enables proactive risk tiering and targeted capacity-building interventions.

Brightness uniformity is no longer a “nice-to-have.” In lighting applications where human perception, safety, and brand integrity converge, it’s a non-negotiable engineering outcome—and one that begins long before the first pixel illuminates.

Contact Global Supply Review today to access our Lighting & Displays Sourcing Intelligence Dashboard—including real-time supplier uniformity benchmarking, thermal design gap analysis, and ESG-aligned material traceability templates tailored for your next LED procurement cycle.
