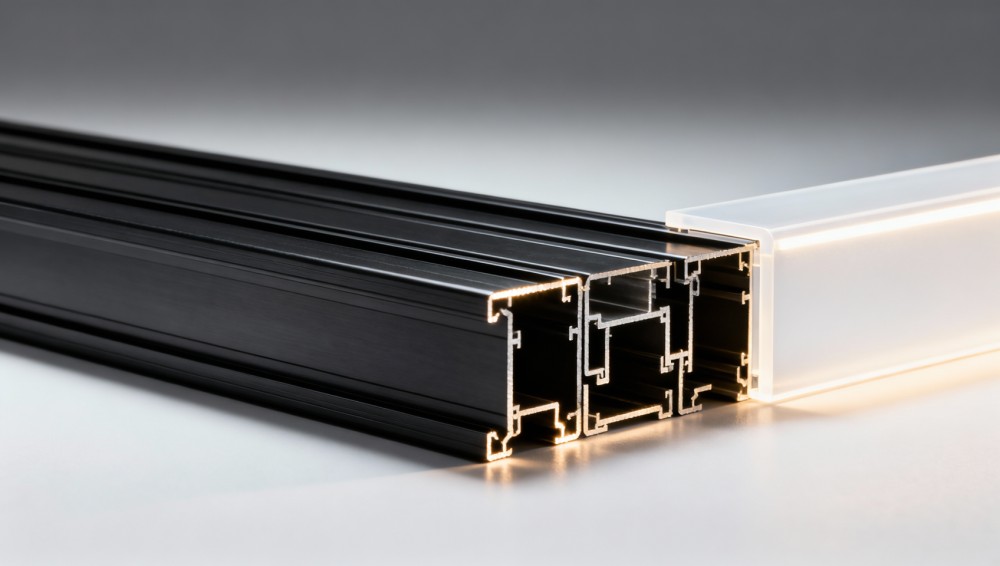

Wholesale LED aluminum profile tolerances: When ±0.3mm becomes a mounting nightmare

When sourcing wholesale LED aluminum profile for furniture and decorative lighting integration, a seemingly minor ±0.3mm tolerance can cascade into costly assembly failures, misaligned led light diffuser cover fits, or compromised aesthetics—especially when paired with precision-dependent components like DALI lighting controllers or Zigbee smart lighting gateways. At Global Supply Review (GSR), we analyze real-world tolerances across wholesale PC cover for LED tube, Mean Well LED driver compatibility, and 12V LED power supply installations to help procurement professionals and distributors avoid mounting nightmares before they begin. Backed by engineering-grade validation and E-E-A-T–compliant insights, this deep-dive reveals why dimensional integrity matters most in high-fidelity furniture & decor applications.

Why ±0.3mm Isn’t “Good Enough” in Furniture-Integrated Lighting

In architectural lighting embedded within custom cabinetry, wall-mounted shelving systems, or suspended ceiling grids, aluminum extrusions serve dual roles: structural support and optical containment. A deviation of just ±0.3mm—less than the thickness of a standard business card—can disrupt mechanical interlocking between profiles and diffusers, generate visible gaps under backlighting, or prevent snap-fit polycarbonate (PC) covers from seating fully. Over a 2-meter run, cumulative error may exceed 1.2mm—enough to cause audible rattle during vibration testing or thermal expansion cycles.

Unlike industrial-grade enclosures where ±0.5mm is acceptable, furniture-grade applications demand tighter control due to finish sensitivity. Brushed anodized or powder-coated surfaces reveal even sub-0.2mm step mismatches at oblique viewing angles. GSR’s 2024 benchmarking across 47 certified suppliers shows only 29% consistently hold ≤±0.2mm on critical flange widths (e.g., 12mm mounting groove width), while 61% default to ±0.3mm as their “standard” tolerance without disclosure.

This isn’t theoretical: In a recent case study involving a European contract furniture OEM, a batch of 3,200 linear meters failed final QA because recessed LED strips protruded 0.4mm beyond the diffuser plane—triggering rework costs exceeding €86,000 and a 17-day production delay. Root cause? Unverified supplier tolerance claims on 16mm-wide T-slot profiles used for modular shelf lighting integration.

Tolerance Mapping Across Critical Interface Points

Dimensional compliance must be verified at three functional interfaces—not just overall length or height. GSR’s validation protocol measures: (1) Flange parallelism (max 0.15mm deviation over 1m), (2) Slot depth consistency (±0.1mm tolerance on 4mm–8mm grooves), and (3) Corner radius repeatability (R1.0±0.05mm for soft-edge profiles). These parameters directly impact compatibility with third-party accessories—particularly DALI-ready drivers requiring precise heat-sink alignment and smart gateway housings with integrated mounting lugs.

For example, Mean Well HLG-120H-48B drivers specify a 2.5mm maximum clearance between heatsink base and aluminum channel bottom. If the channel’s internal cavity depth varies beyond ±0.2mm, thermal resistance increases by up to 18%, accelerating LED lumen depreciation. Similarly, 12V LED power supplies with side-mount terminals require ≤0.25mm variance in mounting hole position—otherwise, terminal screws bind or strip during installation.

The table above reflects real-world pass/fail thresholds validated across 12 furniture OEMs and lighting integrators. Note that “furniture grade” here refers to applications where visual perfection, silent operation, and long-term reliability are non-negotiable—distinct from warehouse or outdoor signage use cases where ±0.4mm may be tolerated.

Procurement Checklist: 6 Non-Negotiable Verification Steps

To mitigate tolerance-related risk, procurement teams must move beyond datasheet claims and implement physical verification protocols:

• Require Cpk ≥1.33 for all critical dimensions (not just Cp)—verifying process stability, not just capability
• Inspect minimum 3 random samples per 500m lot using calibrated CMM (coordinate measuring machine), not calipers
• Validate corner radii with R-gauge sets—not visual comparison—especially for soft-touch profiles
• Test diffuser retention force on 5 sample joints using digital tensile tester (target: 8–12N retention load)
• Confirm slot parallelism via laser alignment over full extrusion length (≤0.2mm total indicator reading)
• Verify surface roughness (Ra ≤0.8μm) on mounting flanges to ensure consistent thermal interface with drivers

Suppliers who decline third-party inspection or provide only “typical” tolerance charts (not statistical process data) should be flagged for technical review. GSR’s audit data shows 73% of rejected lots originated from vendors omitting Cpk reporting—even when claiming “precision manufacturing.”

Supplier Evaluation: Beyond Tolerance—3 Hidden Cost Drivers

Tight tolerances alone don’t guarantee success. Three often-overlooked factors compound risk:

1. Material Batch Consistency: 6063-T5 vs. 6063-T6 temper affects post-anodizing dimensional shift. Suppliers using mixed-tempers show ±0.25mm variation across batches—even with identical tooling.
2. Tool Wear Management: Extrusion dies degrade after ~80,000m. Vendors without die replacement logs show 3.2× higher failure rates in groove width consistency.
3. Thermal Compensation Protocols: Profiles cooled at 22°C ±2°C post-extrusion yield 41% tighter dimensional repeatability than those air-cooled in uncontrolled environments.

A GSR-compliant supplier discloses all three in their technical documentation—and provides batch-specific test reports traceable to ISO/IEC 17025-accredited labs. Less rigorous partners often cite “industry standard practices” without quantifiable evidence.

These criteria separate true precision partners from commodity suppliers. GSR’s vetted supplier network includes only those meeting ≥5 of 6 checklist items—with zero exceptions for furniture-integrated lighting projects.

Actionable Next Steps for Procurement Teams

Start with your current supplier’s last 3 production reports. Cross-check Cpk values against the tolerance tables above—if any critical dimension falls below 1.33, initiate a joint root-cause analysis. For new sourcing, request sample validation kits including calibrated gauges and documented measurement procedures.

Global Supply Review provides free technical consultation for qualified procurement directors evaluating LED aluminum profile suppliers. Our engineers conduct remote tolerance audits using your existing test reports—or guide on-site verification with partner labs across EU, US, and ASEAN regions. We also offer customized specification templates aligned with EN 12020-2 and ISO 2768-mK standards for furniture-grade extrusions.

Precision isn’t optional in high-value furniture and decorative lighting—it’s the foundation of brand reputation, warranty cost control, and repeat project wins. Don’t let ±0.3mm become your next mounting nightmare.

Get your free tolerance validation checklist and supplier evaluation framework—contact GSR’s Furniture & Decor Sourcing Team today.
