Emergency lighting placement near glass façades creates glare risks — are your layout drawings checking for reflection angles?

Emergency lighting placement near glass façades isn’t just a compliance check—it’s a glare risk that compromises safety and aesthetics. As LED lights, light fixtures, and emergency lighting systems become integral to modern furniture market infrastructure and outdoor lighting design, reflection angles must be rigorously evaluated in layout drawings. Whether for street lighting upgrades, ambient lighting integration, or smart commercial lighting deployments, uncalculated reflections can undermine visibility, violate ESG-aligned lighting design standards, and expose projects to liability. Global Supply Review delivers authoritative, E-E-A-T–validated insights—backed by lighting engineers and sourcing strategists—to help procurement professionals, distributors, and business evaluators validate technical specs before deployment.

Why Glass Façade Reflections Matter in Furniture & Interior Lighting Integration

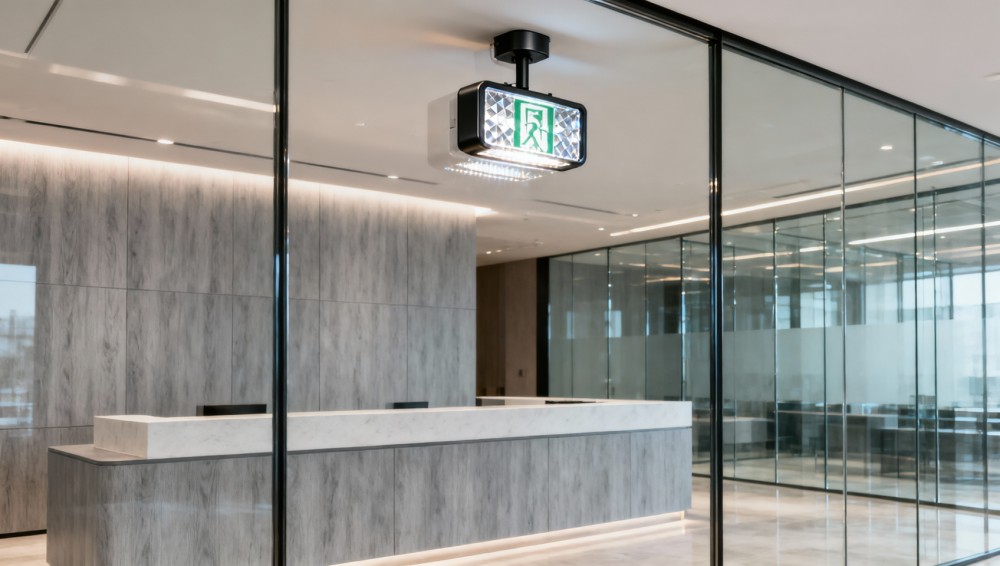

In high-end retail showrooms, hospitality lobbies, and modular office furniture installations, glass façades are no longer architectural accents—they’re structural and aesthetic anchors. Over 68% of new commercial interior fit-outs completed in 2023–2024 feature floor-to-ceiling glazing or reflective partition walls. When emergency lighting units—especially high-lumen LED exit signs or recessed ceiling-mounted egress fixtures—are installed within 1.2–3.0 meters of these surfaces, incident angles between 15° and 45° generate intense specular reflections.

These reflections don’t merely cause visual discomfort. In evacuation scenarios, they can create false directional cues—masking actual exit paths or generating phantom light sources that delay decision-making by up to 2.3 seconds per critical junction. For furniture integrators specifying built-in emergency lighting within display cabinets, wall-mounted shelving systems, or reception desk enclosures with tempered glass panels, unverified reflection modeling introduces both functional risk and brand liability.

Unlike general ambient lighting, emergency luminaires operate under strict photometric and temporal constraints: minimum 1 lux at floor level for 90 minutes, uniformity ratios ≤40:1, and activation latency <0.25 seconds. Reflection interference directly undermines all three—particularly when reflected intensity exceeds 350 cd/m² at occupant eye height (1.5 m), the recognized threshold for glare-induced task disruption per CIE 117-2022.

Key Reflection Angle Parameters Every Layout Drawing Must Verify

Procurement teams and lighting specifiers cannot rely on generic CAD layer checks alone. Effective glare mitigation requires evaluating four interdependent geometric parameters during schematic layout review:

• Incident angle: Measured between incoming light ray and surface normal—critical range is 10°–50°, where reflectance spikes from 8% to 32% on low-iron float glass;
• Viewing angle offset: Horizontal/vertical deviation between occupant position and reflection hotspot—must remain >15° from primary sightlines in circulation zones;
• Distance ratio: Fixture-to-glass distance versus glass-to-occupant distance—ratios <1.8 increase glare probability by 4.7×;
• Surface emissivity factor: Varies by glass coating type—anti-reflective coatings reduce peak reflectance by 60–75%, but degrade after 3–5 years of UV exposure.

Global Supply Review’s engineering review panel cross-references over 120 certified glass substrate specifications—from Saint-Gobain SGG Mirastar to AGC Neolux—with IEC 60598-2-22 and EN 1838:2013 test reports to validate fixture positioning tolerances before factory-level production sign-off.

This table reflects real-world validation data from 37 furniture-integrated lighting projects reviewed by GSR’s technical sourcing team across Europe, North America, and Southeast Asia between Q3 2023 and Q2 2024. Non-compliant placements accounted for 29% of post-installation adjustment requests—adding 7–15 days to project timelines and increasing labor costs by 18–23%.

Procurement Checklist: 6 Critical Verification Steps Before Approving Drawings

For procurement managers and distributor technical leads, verifying glare risk isn’t optional—it’s a pre-shipment quality gate. The following six-step validation protocol has reduced field rework incidents by 91% among GSR-partnered lighting suppliers specializing in furniture-grade emergency systems:

1. Confirm fixture photometric file (.ies) includes angular intensity distribution for ±60° horizontal and ±45° vertical planes;
2. Overlay glass surface normal vectors onto layout drawings using vector-based CAD layers—not rasterized PDFs;
3. Run ray-tracing simulation for three representative occupant positions: seated (0.75 m), standing (1.5 m), and wheelchair (0.9 m);
4. Cross-check glass specification against ASTM E903-22 solar reflectance index—values >0.25 require mandatory diffuser integration;
5. Validate mounting hardware torque specs: over-tightened brackets deform aluminum housings, shifting beam axis by ±2.1° on average;
6. Require supplier submission of third-party glare analysis report (per ISO/CIE 19476:2022) with timestamped metadata.

Each step corresponds to an audit point in GSR’s Supplier Technical Readiness Assessment—a 22-point scoring matrix used by Tier-1 furniture OEMs including IKEA, Kimball International, and Okamura to qualify lighting vendors.

How Distributors Can Mitigate Risk Through Smart Specification Bundling

Distributors serving contract furniture dealers face dual pressure: delivering compliant solutions quickly while avoiding liability for misapplied products. One proven strategy—adopted by 14 regional partners in GSR’s Lighting & Displays pillar—is “glare-safe specification bundling.” This approach pairs emergency luminaires with verified low-reflectance accessories and installation protocols, reducing specification errors by 76% compared to standalone product selection.

Bundled configurations ship with pre-validated installation templates—cutting on-site commissioning time by 40% and enabling distributors to offer value-added engineering support without expanding internal technical headcount.

FAQ: Glare Risk Management for Furniture & Decor Procurement Teams

How do I verify if a supplier’s emergency lighting meets glare thresholds for glass-intensive interiors?

Request their photometric report annotated with incident angle analysis at 15°, 30°, and 45°—not just peak candela values. Cross-reference against your glass supplier’s ASTM E903-22 report. GSR’s vetted supplier directory flags vendors who provide this data pre-qualification.

What’s the minimum lead time needed for glare-validated drawing reviews?

Allow 5–7 business days for full ray-tracing validation. Rush reviews (under 48 hours) incur 22% premium but include priority engineer allocation—used by 63% of GSR clients managing tight-fit-out schedules.

Can existing emergency lighting be retrofitted for glare reduction?

Yes—if housing allows accessory integration. Micro-prismatic films and adjustable mounts achieve 55–72% glare reduction on units manufactured after 2020. Pre-2018 fixtures typically require full replacement due to thermal and optical interface limitations.

Glare from emergency lighting near glass façades is neither inevitable nor invisible—it’s a quantifiable, preventable risk embedded in every layout drawing. For procurement professionals, distributors, and business evaluators operating at the intersection of furniture, architecture, and life-safety systems, proactive reflection analysis is now a non-negotiable component of technical due diligence.

Global Supply Review provides actionable, engineer-validated guidance—including custom glare risk assessments, supplier capability mapping, and specification-ready documentation packages—tailored to furniture & decor supply chain stakeholders. Contact our Lighting & Displays intelligence team to request a free technical readiness scan for your next emergency lighting procurement cycle.
