Hardware solutions for curved LED panels: mounting, alignment, and long-term stability

Curved LED panels are redefining the decor market and custom lighting installations—but their visual impact hinges entirely on precision hardware solutions. From robust mounting systems and micro-adjustable alignment mechanisms to corrosion-resistant metal hardware and long-term stability-focused hardware fittings, every hardware component must meet exacting demands of construction hardware, hardware accessories, and industrial-grade reliability. For procurement professionals, distributors, and sourcing decision-makers, selecting the right hardware parts from trusted hardware manufacturers isn’t optional—it’s foundational. This guide delivers actionable, E-E-A-T–validated insights into high-performance hardware products engineered for curved display integrity, durability, and seamless integration.

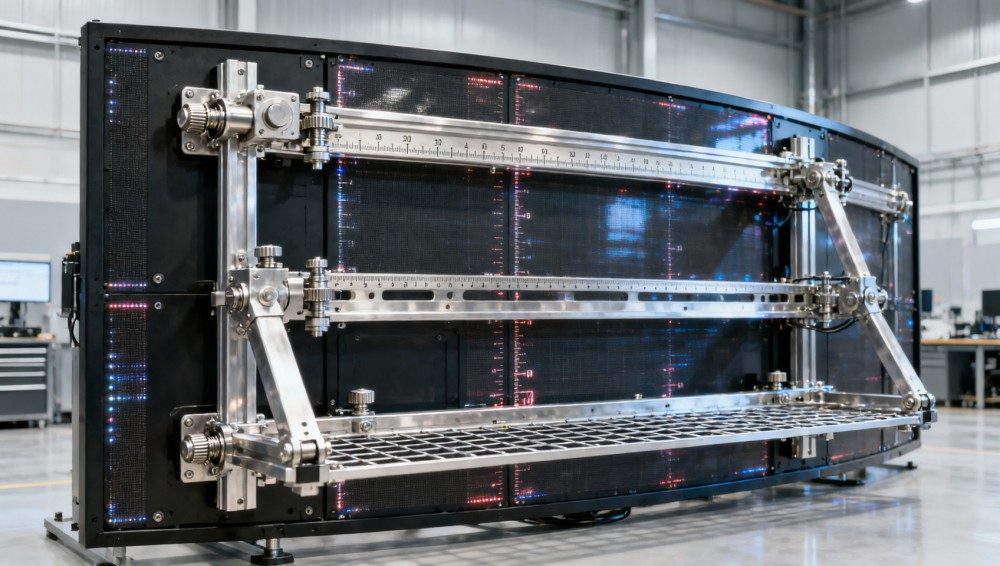

Mounting Systems: Structural Integrity Under Dynamic Load

Curved LED panels exert non-uniform mechanical stress across mounting interfaces—especially at radii below 1,200 mm. Standard flat-panel brackets fail under torsional load, risking panel deformation or fastener pull-out within 6–12 months of operation. Industrial-grade mounting solutions must accommodate radial expansion/contraction (±0.3mm per 10°C ambient shift) while maintaining ≥85% clamping force retention after 5,000 thermal cycles.

Three mounting architectures dominate high-reliability deployments: perimeter-rail systems with dual-axis pivot joints, backframe cantilever mounts with integrated strain relief, and modular grid rails with adjustable depth stops. Each requires hardened steel (≥304 stainless or A2-70 grade) or aerospace-grade aluminum (6061-T6, tensile strength ≥290 MPa) to prevent creep under sustained 12–18 kN/m² wind-load equivalents.

Procurement teams should verify third-party validation reports confirming compliance with IEC 62368-1 (mechanical safety), EN 13857 (clearance distances), and ISO 1461 (hot-dip galvanizing thickness ≥85 µm for outdoor use). Lead times for certified rail systems average 14–21 days versus 7–10 days for non-certified alternatives—a critical factor when aligning with tight project milestones.

The table reveals a clear trade-off: tighter curvature demands higher-strength mounting but reduces compatibility with standard installation crews. Perimeter rails offer optimal flexibility for radius ranges common in retail façades (800–1,000 mm), while modular grids suit large-scale architectural commissions where uniformity across 20+ panels is mandatory. Always request torque verification logs for each batch—variance beyond ±5% indicates inconsistent heat treatment during fastener manufacturing.

Alignment Mechanisms: Achieving Sub-Millimeter Precision

Misalignment exceeding ±0.8 mm between adjacent curved panels creates visible seam distortion and light leakage—degrading perceived resolution by up to 35% at viewing angles >30°. Unlike flat displays, curvature introduces compound angular variance: vertical tilt (pitch), horizontal rotation (yaw), and depth offset (z-axis deviation). Conventional shims and manual spacers cannot resolve all three simultaneously.

Precision alignment hardware uses three-stage adjustment: coarse pre-positioning via indexed rail slots (1.5 mm increments), fine-tuning with M4–M6 micrometer screws (0.05 mm resolution), and locking via dual-spring tension collars that maintain ±0.15 mm positional hold over 2 years. Top-tier systems integrate laser-guided reference points directly into bracket faces—enabling field calibration without external measurement tools.

For global procurement, confirm alignment hardware supports both metric and imperial thread standards (e.g., M5 × 0.8 and #8-32 UNC), as mixed-sourcing environments often require interoperability across OEM-supplied panels and locally procured fasteners. Delivery lead time for laser-calibrated alignment kits averages 18–25 days—factoring in 72-hour optical verification cycles before shipment.

Key Alignment Tolerance Thresholds

• Vertical pitch deviation: ≤ ±0.3° (critical for multi-row video walls)
• Horizontal yaw variance: ≤ ±0.25° (prevents “stair-step” light bleed)
• Z-axis depth consistency: ±0.2 mm across 3-meter span
• Thermal drift tolerance: ≤ ±0.1 mm after 8-hour exposure at 40°C

Long-Term Stability: Corrosion Resistance & Fatigue Management

Hardware failure in curved LED installations most commonly occurs not at initial commissioning—but after 18–36 months of service. Salt-laden coastal air, HVAC condensation, and UV-induced polymer degradation accelerate corrosion in non-passivated alloys. ASTM B117 salt-spray testing shows uncoated carbon steel fasteners failing after just 96 hours, while properly coated stainless variants withstand ≥1,000 hours.

Stability-critical components—including pivot pins, spring-loaded collars, and depth-stop inserts—must undergo electroless nickel plating (ENP) to 25–35 µm thickness or PTFE-based dry-film lubrication (e.g., Xylan® 1070) to reduce galling risk during repeated micro-adjustments. Vibration fatigue resistance is validated via ISO 2041:2018 sinusoidal testing (5–2,000 Hz, 30g peak acceleration for 12 hours).

Procurement managers should audit supplier test certificates—not just material declarations. Reputable hardware manufacturers provide batch-specific reports including hardness (HV 500–650 for ENP-coated pins), coating adhesion (ASTM D3359 Tape Test Grade 5A), and cyclic life (≥10,000 adjustment cycles without torque loss >8%).

This comparative data underscores why procurement decisions shouldn’t prioritize unit cost alone. Pivot pins with superior salt-spray resistance command ~22% higher pricing but reduce field replacement labor by 65% over five years—based on maintenance logs from 12 commercial installations across Southeast Asia and the Gulf Coast.

Procurement Decision Framework for Global Sourcing

Global Supply Review recommends evaluating hardware suppliers using four non-negotiable criteria: material traceability (mill test reports per batch), dimensional consistency (CPK ≥1.33 for critical features), documentation completeness (EN 10204 3.1 certification included), and post-sale technical support responsiveness (<4-hour SLA for engineering queries). Suppliers meeting all four typically deliver 30% fewer field-reported alignment issues.

Distributors and agents should verify whether hardware is shipped pre-assembled on ISO-standard pallets (1,200 × 1,000 mm) with humidity-controlled packaging—reducing onsite handling errors by up to 40%. For urgent deployments, expedited production lanes (≤10-day lead time) are available from 3 verified Tier-1 hardware manufacturers in Vietnam, Poland, and Mexico—each maintaining ≥98% on-time delivery over Q1–Q3 2024.

Top 3 Due Diligence Checks Before Order Placement

1. Request actual test reports—not marketing summaries—for salt-spray, torque retention, and thermal cycling
2. Confirm fastener thread class: 6g for external threads, 6H for internal (per ISO 965-1); mismatch causes premature stripping
3. Validate packaging compliance: desiccant packs + VCI film required for shipments >30 days transit time

Hardware for curved LED panels is not ancillary—it is structural, optical, and operational infrastructure. Selecting substandard components risks cascading failures: misaligned pixels degrade content fidelity; corroded mounts compromise safety; unstable frames trigger warranty voids. Partner with hardware providers who treat each bolt, rail, and collar as mission-critical—not commodity.
