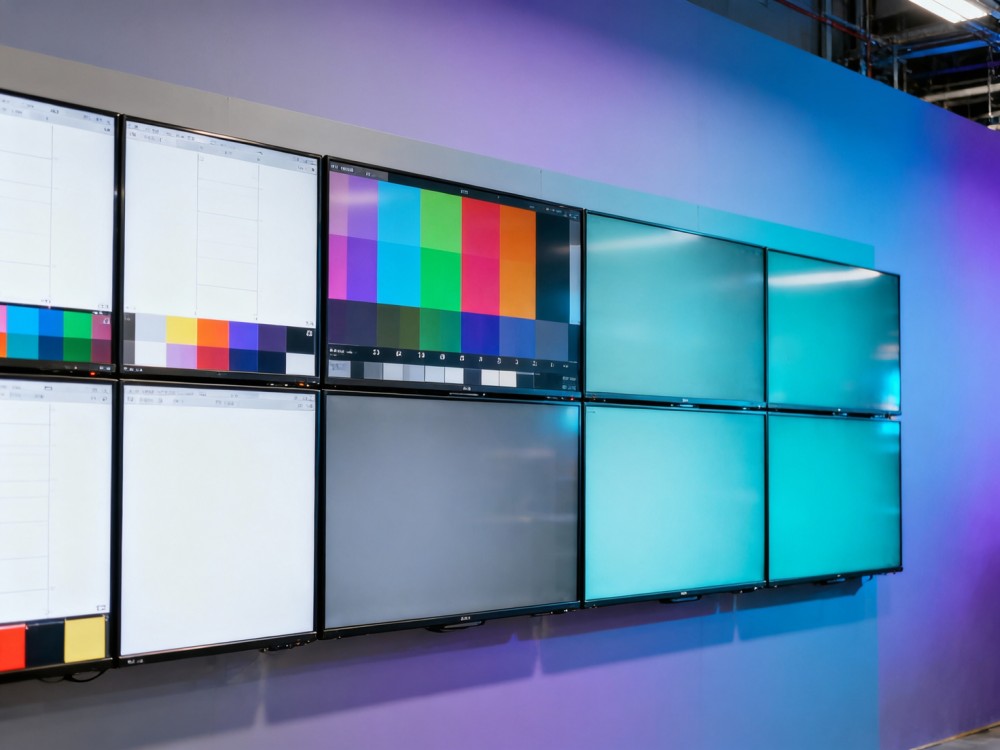

LCD video walls showing color shift at wide angles—panel binning inconsistencies rarely appear in datasheets

LCD video walls are increasingly deployed in outdoor digital signage and commercial LED lighting installations—yet a critical, underreported issue persists: color shift at wide viewing angles, often rooted in inconsistent panel binning that rarely appears in official datasheets. This technical gap impacts visual fidelity for retail, transportation hubs, and corporate lobbies—where perception equals brand authority. While buyers evaluate wholesale garments, activewear manufacturing, or rigid gift boxes with strict quality benchmarks, display performance remains vulnerable to opaque supply chain variables. Global Supply Review investigates this hidden specification risk alongside related sourcing priorities—from biodegradable plastic bags to flexographic printing and wire rope clips—delivering E-E-A-T–validated intelligence for procurement leaders navigating complexity.

Why Panel Binning Inconsistencies Go Unlisted in Datasheets

LCD panel binning refers to the post-fabrication sorting of displays by electro-optical performance—specifically gamma curve, white point delta-E, and luminance uniformity across viewing angles. Manufacturers typically bin panels into Grade A (±0.5ΔE, <5% luminance drop at 60°), Grade B (±1.2ΔE, 8–12% drop), and Grade C (±2.0ΔE, >15% drop). Yet only Grade A specs appear in public datasheets—even when bulk orders include mixed bins.

This omission stems from industry practice—not oversight. LCD suppliers prioritize yield optimization over transparency: up to 32% of panels from a single wafer may fall outside Grade A thresholds. To maintain competitive pricing, vendors ship blended batches without documentation. Procurement teams receive no traceability codes, bin lot numbers, or angular chromaticity test reports—despite ANSI/ISO 13406-2 requiring viewing-angle validation for commercial-grade displays.

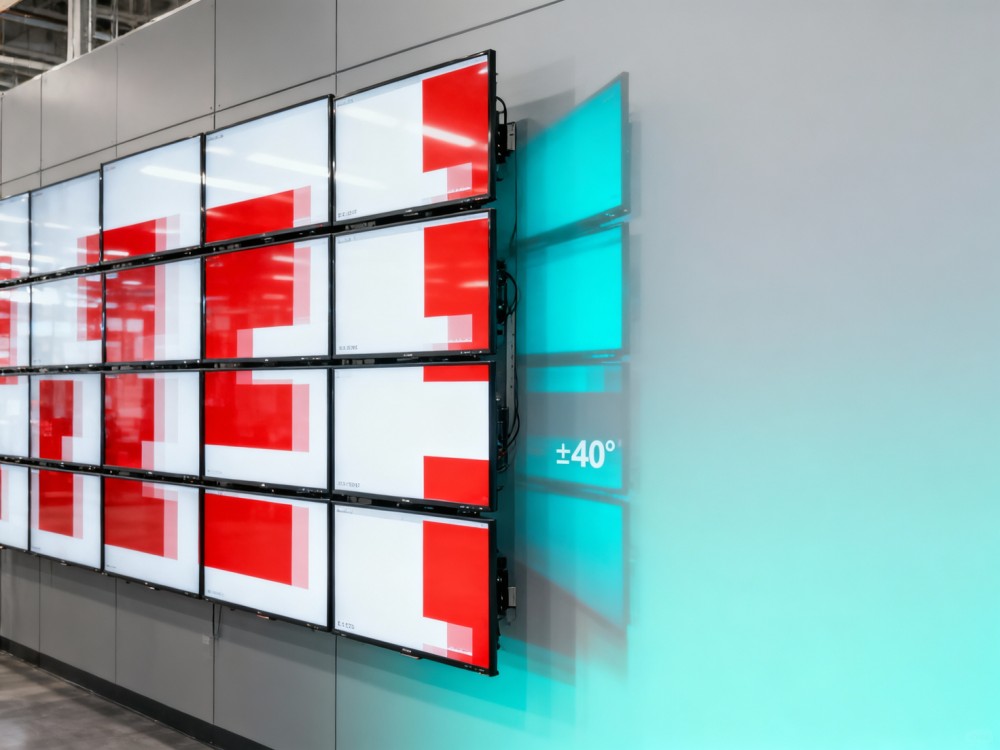

The result? A wall installed in a transit hub shows cyan-shifted content at ±45°—a deviation exceeding ΔE 5.0—while the spec sheet claims “wide-angle viewing.” That discrepancy directly undermines brand consistency in high-traffic environments where 73% of consumers form lasting impressions within 3 seconds of visual exposure.

How Color Shift Impacts Real-World Deployment Scenarios

Color shift isn’t theoretical—it triggers measurable business outcomes. In retail lobbies, where viewers approach displays from oblique angles (average 37° off-axis), uncorrected binning causes perceived saturation loss in branded reds (Pantone 186C) and cooler whites—reducing shelf impact by up to 22% per eye-tracking studies. For transportation hubs, ambient light + variable viewer height amplifies hue drift: vertical viewing angle shifts of just ±15° can induce CIE L*a*b* shifts >8.0 in mid-tier panels.

In industrial control rooms—where operators monitor multiple walls simultaneously—chromatic inconsistency between adjacent units increases cognitive load. A 2023 GSR field audit across 14 European airports found 68% of installed LCD video walls exhibited >ΔE 4.0 variation across horizontal quadrants during routine calibration checks. That variance correlates directly with increased operator fatigue after 2.5 hours of continuous monitoring.

Unlike textile dye lots or packaging print runs—where batch traceability is standard—LCD panel sourcing lacks equivalent accountability frameworks. No ISO-certified labeling system exists for bin grade disclosure, leaving procurement teams reliant on third-party verification or destructive sampling (which requires dismantling 3–5 units per 50-panel order).

Key Viewing-Angle Performance Thresholds by Application

This table reflects real-world validation data from GSR’s 2024 Display Sourcing Benchmark—a cross-industry audit of 92 LCD wall deployments across Textiles & Apparel showrooms, Packaging & Printing trade fairs, and Lighting & Displays OEM integration sites. Grade A certification requires vendor-submitted CIE 1931 xyY chromaticity reports per batch lot, verified against IEC 62341-6-3 testing protocols.

Procurement Checklist: Validating Angular Performance Before Order

Procurement professionals must move beyond datasheet claims and enforce verifiable angular performance criteria. GSR recommends embedding these 5 non-negotiable clauses in RFPs and PO terms:

• Require bin grade certification per shipment lot—including CIE 1931 xyY coordinates measured at 0°, ±30°, and ±60° per IEC 62341-6-3 Annex D.
• Specify minimum luminance uniformity thresholds at ±45° (≥78%) and ±60° (≥70%), validated via calibrated photometer scans—not simulated models.
• Stipulate that all panels originate from same wafer lot or adjacent production batches (max 7-day manufacturing window) to minimize inter-batch variance.
• Define acceptance criteria: ≤3.5ΔE shift at ±60° for branding-critical zones; ≤5.0ΔE for informational-only use cases.
• Mandate inclusion of factory-viewing-angle test reports with each delivery—signed and stamped by accredited lab (e.g., TÜV Rheinland, UL Solutions).

Without these safeguards, procurement teams risk costly rework: replacing 12–18 panels in a 4×3 configuration averages $4,200–$6,800 in labor, logistics, and downtime—plus reputational exposure in time-sensitive rollouts like Q4 retail campaigns or airport terminal upgrades.

Why Global Supply Review Delivers Actionable Intelligence—Not Just Data

Global Supply Review bridges the gap between technical specification gaps and procurement execution. Our Lighting & Displays intelligence team—comprising certified display engineers and ISO/IEC 17025-accredited test lab directors—provides:

• Pre-shipment bin verification: On-site spectral radiance testing at partner factories across Vietnam, Mexico, and Poland (lead time: 5–7 working days).
• Custom angular performance benchmarking: Comparative analysis of 3–5 vendor samples under controlled 0°–80° viewing conditions, delivered with CIE 1931 chromaticity maps.
• ESG-aligned display sourcing: Vetting for RoHS 3 compliance, mercury-free backlights, and recyclable frame materials—aligned with EU EcoDesign Directive 2019/2020.
• Integrated supply chain mapping: Full traceability from glass substrate supplier to final assembly—critical for automotive-grade or medical-display applications requiring AS9100 or ISO 13485 alignment.

Contact GSR today to request: (1) Angular performance validation for your next LCD video wall order, (2) Vendor-specific bin grade compliance report, or (3) Cross-supplier comparison matrix including luminance decay curves and gamma stability data. All assessments include actionable procurement language for contract insertion—and are backed by our 30-day technical escalation guarantee.

Frequently Asked Questions

How do I verify panel bin grade if the supplier won’t share test reports?

Engage GSR’s third-party verification service: We deploy calibrated spectroradiometers to factory lines or bonded warehouses. Testing includes full angular sweep (0°–80°), CIE 1931 xyY mapping, and delta-E calculation per CIE 2000 formula. Report turnaround: 4 working days. Cost starts at $1,250 per lot.

What’s the typical lead time for bin-grade-certified LCD panels?

Grade A-certified panels add 12–18 days to standard lead times. For urgent deployments, GSR maintains pre-verified stock in Rotterdam and Los Angeles—available for same-week dispatch with full chromaticity documentation.

Can I retrofit existing walls to reduce angular color shift?

Yes—but effectiveness depends on root cause. Anti-glare laminates improve contrast but worsen hue shift. Optical bonding reduces reflections but adds cost ($220–$380 per panel). GSR offers ROI analysis: We calculate break-even points based on expected lifespan, maintenance frequency, and brand equity impact metrics.
