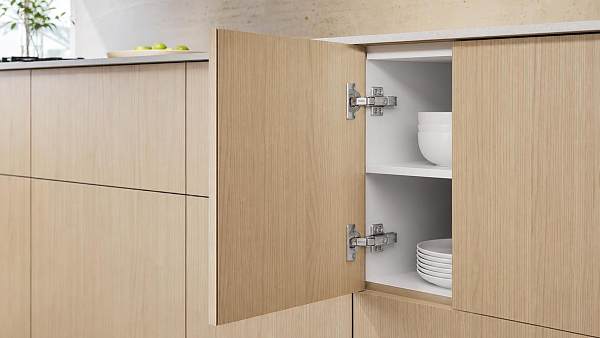

How to choose inset cabinet hinges for a flush door reveal

What Searchers Usually Need to Know Before Buying Inset Cabinet Hinges

People researching inset cabinet hinges usually want to replace existing hardware, build new cabinets, or correct doors that sit unevenly within their frames.

Their main concern is whether a listed hinge will create a true flush reveal instead of leaving the door proud of the cabinet face.

They also need clarity about terminology. “Inset,” “full inset,” “flush,” and “face-frame” are sometimes used inconsistently by retailers and manufacturers.

A useful buying decision starts with the cabinet and door geometry, not with the finish, brand, or soft-close feature shown in a product listing.

Measure the opening, identify whether the cabinet has a face frame, and determine the door thickness before narrowing the available hinge options.

These checks prevent the most expensive mistake: drilling a cup hole or mounting plate pattern that does not work with the selected hinge.

Understand What a True Inset Door Is

An inset cabinet door fits inside the cabinet opening rather than covering the cabinet sides or frame. Its front surface is usually flush with the surrounding cabinet face.

When closed, the door is bordered by a deliberate, even gap called the reveal. This gap allows movement while preserving the tailored inset appearance.

Inset doors are common in traditional framed cabinetry, premium custom kitchens, built-ins, vanities, and furniture where crisp alignment matters visually.

They differ from full-overlay doors, which cover most of the cabinet front, and partial-overlay doors, which leave part of the cabinet face visible.

Because inset doors occupy the opening itself, they have less clearance tolerance than overlay doors. Hinge selection and adjustment therefore become more important.

A correctly installed inset door should close smoothly without striking the frame, neighboring doors, drawer fronts, or interior pull-out accessories.

Before ordering, close an existing door and inspect its edge. If the edge disappears inside the opening, you likely need inset cabinet hinges.

Start With Cabinet Construction: Face Frame or Frameless

The cabinet construction determines the mounting arrangement. Face-frame cabinets have a solid wood frame around the front opening, while frameless cabinets use exposed side panels.

Face-frame construction is common in North American kitchens. The hinge may mount to the frame, a face-frame adapter plate, or an interior mounting block.

Frameless cabinets, often called European-style cabinets, use a mounting plate attached directly to the cabinet side wall behind the door opening.

Do not assume a face-frame hinge and frameless hinge are interchangeable. Their arm geometry, plate height, and available adjustment ranges can differ significantly.

For face-frame cabinets, measure the frame width and inspect the current hinge mounting location. Narrow frames can limit which hinge plates fit securely.

For frameless cabinets, measure the cabinet side thickness and confirm that there is sufficient interior clearance for the hinge cup, arm, and mounting plate.

Product descriptions should explicitly state “inset face-frame,” “inset frameless,” or provide a compatibility chart. Vague descriptions deserve additional verification before purchase.

Measure the Door, Opening, and Reveal Before Ordering

Accurate measurements are the foundation of a flush door reveal. Use a tape measure for overall dimensions and a caliper for door thickness and hinge drilling details.

First measure the width and height of the cabinet opening at multiple points. Older cabinets may be slightly out of square or vary from top to bottom.

Then measure the actual door. An inset door should be smaller than the opening by the total reveal allowance on all four sides.

Many cabinetmakers use a reveal of approximately one-sixteenth to one-eighth inch, depending on the cabinet style, wood movement, and desired visual effect.

A one-sixteenth-inch reveal produces a refined, tight appearance, but it requires accurate fabrication and careful hinge adjustment. Wider reveals offer more installation tolerance.

Measure the door thickness next. Common cabinet doors are three-quarter inch thick, although thinner furniture doors and thicker decorative doors need specialized hardware consideration.

Also record the distance from the door edge to the existing cup hole, if one exists. This setback affects how the door swings and closes.

Never rely solely on nominal dimensions from a cabinet plan. Measure the finished door and cabinet because paint, veneer, edge banding, and seasonal movement can alter fit.

Choose the Right Hinge Type for the Inset Position

Most modern inset installations use concealed European-style cup hinges. These provide a clean exterior appearance and allow adjustments after the doors are mounted.

A typical concealed hinge uses a 35-millimeter cup drilled into the back of the door. Smaller cups are available for narrow doors or lightweight furniture applications.

Look specifically for “full inset” or “inset” hinge arms. The arm shape pulls the closed door inward so it rests within the cabinet opening.

Some hinge systems achieve the inset position using a particular mounting plate height rather than a visibly different arm. Follow the manufacturer’s pairing chart exactly.

Traditional surface-mounted butt hinges, knife hinges, and pivot hinges can also support inset doors. They suit period furniture or exposed-hardware designs but require more precise layout.

For a typical kitchen or bathroom renovation, concealed adjustable inset cabinet hinges are usually the practical choice because they simplify alignment during installation.

When replacing old hardware, identify the existing hinge type first. Reusing compatible cup holes and screw locations can reduce labor and preserve door integrity.

Check Cup Diameter, Cup Depth, and Boring Pattern

The 35-millimeter cup is the standard for many concealed cabinet hinges, but standard diameter does not guarantee that every hinge will fit an existing door boring.

Confirm the cup depth listed by the hinge manufacturer. A shallow door may not safely accept a deep cup without risking a visible bump or breakthrough.

Door material matters as well. Solid wood, plywood, MDF, and particleboard have different screw-holding characteristics, especially near the cup drilling area.

Measure the cup setback, sometimes called the tab distance. This is the distance between the door edge and the nearest edge of the cup hole.

Common setbacks often fall around three to five millimeters, but the correct value depends on the hinge model, door profile, and desired closed position.

Check the two screw-hole locations surrounding the cup. Manufacturers use different patterns, and a mismatch can require new pilot holes or repair work.

If drilling new doors, use a quality 35-millimeter Forstner bit or a dedicated concealed-hinge boring jig. A clean, level hole improves holding strength and operation.

Drill a test hole in scrap material first. This verifies cup depth, screw placement, and the final door position before you commit to finished cabinet parts.

Pick an Opening Angle That Works With Your Kitchen Layout

Opening angle determines how far the door swings away from the cabinet. Standard concealed hinges commonly open around 105 to 110 degrees.

A standard opening angle works for many cabinets, but it may be inadequate beside walls, appliances, pull-out trays, or drawers that need extra access.

Wide-angle hinges can open farther, often up to 155 or 165 degrees. They are useful for corner cabinets, pantry pull-outs, and cabinets with interior organizers.

However, a wider opening angle is not automatically better. The door may contact an adjacent wall, handle, or neighboring cabinet before reaching the hinge’s full travel.

Open an existing door fully and note any obstructions. For a new project, sketch the door swing and account for handles, adjacent appliances, and room circulation.

Hinge opening also affects clearance at the hinge side. Inset doors can require carefully matched plates or restrictors to avoid binding as the door moves.

For paired doors, consider whether both doors can open comfortably at once. This matters on sink bases, wide storage cabinets, and appliance garages.

Decide Whether Soft-Close Is Worth It

Soft-close inset cabinet hinges use an integrated or add-on damper to slow the door during the final portion of closing. They reduce noise and repeated impact.

For kitchens, bathrooms, and frequently used storage, soft-close hardware is usually worthwhile. It protects finishes and makes lightweight doors feel more controlled.

Soft-close action must match the door weight. A damper that is too strong can prevent a very light door from closing fully.

Conversely, a heavy solid-wood door may need more than two hinges or a hinge model rated for greater weight and frequent use.

Some damped hinges include an on-off switch for each hinge. This is helpful when a narrow or lightweight door closes too slowly with both dampers active.

Do not confuse soft-close with self-close. Self-closing hinges pull the door shut from a small open position, while soft-close controls its final movement.

Many premium concealed hinges offer both functions, but always review the specifications. Product photography alone may not explain the closing behavior accurately.

Plan Hinge Quantity Based on Door Size and Weight

Using too few hinges is a common cause of sagging, uneven gaps, loose screws, and premature hardware failure. Door height and weight both influence hinge count.

A small, light cabinet door may use two hinges. Taller doors often need three, while very tall, wide, or heavy doors may require four or more.

Manufacturer charts provide the best guidance because hinge capacity varies by model, cup attachment method, opening angle, and door material.

As a practical rule, add hinges as door height increases, especially above approximately 30 inches. Heavy hardwood, glass-frame, or thick painted doors also merit extra support.

Place top and bottom hinges far enough from the door ends to resist leverage, while avoiding rails, joints, or decorative profiles that weaken screw holding.

Additional hinges do more than carry weight. They improve long-term alignment by distributing stress across more mounting points during thousands of opening and closing cycles.

For unusually heavy doors, consult the hinge manufacturer’s load table rather than guessing. Weight limits often assume a specified number of hinges and installation spacing.

Use Adjustment Features to Create an Even Flush Reveal

Modern concealed inset cabinet hinges normally provide three-way adjustment: side-to-side, depth, and height. These adjustments are what make a precise flush reveal achievable after installation.

Side-to-side adjustment changes the gap between the door edge and cabinet opening. Use it to create consistent reveals around the door perimeter.

Depth adjustment moves the door inward or outward. This is critical for making the door face sit flush with the cabinet frame or front edge.

Height adjustment moves the door up or down. It corrects uneven top and bottom gaps and aligns adjacent doors across a cabinet run.

Make adjustments gradually, one hinge at a time. Large changes at a single hinge can twist the door or create a misleading improvement in one area.

Start with height, then establish the side reveals, and finally fine-tune depth. Recheck the door after each change because hinge settings interact with one another.

Use a consistent visual reference such as spacer blocks, feeler gauges, or a stack of cards. Eyeballing narrow gaps often produces inconsistent results.

Watch for Common Problems That Prevent a Flush Fit

Doors that rub at the top or bottom may be oversized, out of square, incorrectly positioned, or affected by a cabinet opening that is not perfectly rectangular.

A door that sits proud of the cabinet face may need depth adjustment, but it can also indicate that the hinge is intended for overlay rather than inset use.

A large uneven gap on one side often results from incorrect side adjustment, a loose mounting plate, or a door that has warped after finishing.

When a door springs open after closing, inspect for contact between the door edge and frame. It may also indicate an overly aggressive soft-close damper.

Loose screws in particleboard or damaged wood should be repaired before adjustment. A hinge cannot maintain alignment when its mounting surface is compromised.

Do not force a rubbing door closed. Continued contact can chip paint, crush edge banding, bend hinge arms, or damage a carefully finished cabinet frame.

If the cabinet opening is significantly out of square, a consistent reveal may require minor door trimming or professional cabinet adjustment rather than hinge changes alone.

A Practical Buying Checklist for Homeowners

Before purchasing inset cabinet hinges, write down the cabinet type, door thickness, door dimensions, existing cup diameter, cup setback, and desired opening angle.

Confirm whether the hinge package includes mounting plates. Some systems sell the hinge arm and plate separately, and the selected plate determines final geometry.

Check whether screws are supplied and whether they suit your cabinet material. Face frames, plywood boxes, and particleboard panels may require different screw choices.

For replacement projects, compare the manufacturer, model number, cup pattern, and plate style of the existing hardware whenever possible. A direct match saves time.

Purchase one test hinge before ordering a full set when compatibility is uncertain. Testing costs less than correcting multiple wrongly drilled or mounted doors.

Consider finish only after confirming fit. Nickel, black, brass, and stainless finishes matter where hinges are exposed, but concealed hinge performance is the priority.

Choose established hardware suppliers that publish installation drawings, adjustment instructions, and load information. Clear technical documentation is a useful signal of dependable product support.

Final Decision: Match Geometry Before Features

The best inset cabinet hinges are the ones that match your door position, cabinet construction, boring pattern, weight, and clearance requirements with minimal compromise.

For most homeowners, a full-inset concealed hinge with three-way adjustment and soft-close capability provides the cleanest route to a durable flush door reveal.

Take careful measurements before ordering, verify the mounting plate system, and test the hinge on one door when working with unfamiliar cabinetry or replacement hardware.

Once geometry is correct, adjustment features let you refine the reveal until gaps are even and the door closes smoothly. That precision is what makes inset cabinetry look intentional.
