How to Specify Tolerance and Material for Metric Custom CNC Turned Fasteners

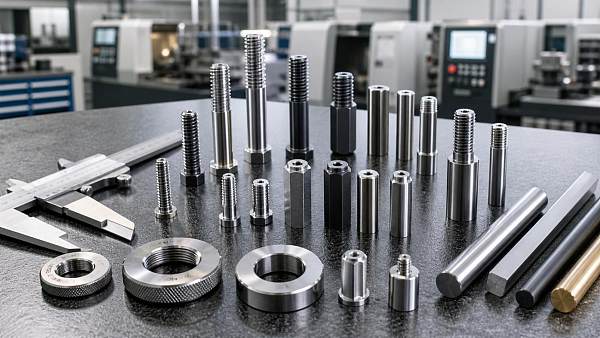

Specifying metric custom CNC turned fasteners requires more than naming a thread size and sending a sketch. In practice, tolerance and material decisions determine whether the part assembles smoothly, holds preload, survives corrosion, and can be manufactured consistently across batches. For technical evaluators, this is where many sourcing risks begin: drawings may be dimensionally complete but functionally vague, or the material callout may be technically correct yet unsuitable for the real operating environment.

That matters even more in cross-border sourcing. A supplier can machine a fastener exactly to print and still deliver the wrong result if the print does not distinguish between critical and non-critical features, or if the selected alloy behaves differently after plating, heat treatment, or assembly. In hardware and fasteners coverage, Global Supply Review often sees the same pattern: specification failures are rarely caused by one missing number alone. They usually come from weak links between design intent, manufacturability, inspection, and service conditions.

Start with function, not only geometry

Before assigning tight tolerances, define what the fastener is actually doing. A custom turned shoulder screw, stud, pin-bolt hybrid, or threaded spacer may combine alignment, clamping, wear contact, and corrosion exposure in one part. Those functions do not place equal importance on every feature.

A useful specification process separates features into three groups:

• Features that control assembly fit, such as major diameter, pitch, shoulder diameter, bearing surface, underhead geometry, or concentricity between turned sections and threads.
• Features that affect mechanical performance, including thread engagement length, root condition, material strength, hardness range, and transitions that may concentrate stress.
• Features with low functional impact, such as non-mating cosmetic surfaces or overall length zones with generous clearance.

This sounds obvious, but many drawings still apply the same general tolerance mindset to all surfaces. That pushes cost up without improving performance. CNC turning can hold close limits on many dimensions, yet unnecessary precision slows cycle time, increases in-process inspection, and raises scrap risk. In fastening applications, the best specification is usually selective, not uniformly tight.

Where tolerance really matters in metric custom CNC turned fasteners

For metric custom CNC turned fasteners, thread definition is the first checkpoint. A metric thread callout should not stop at diameter and pitch. Internal or external thread class, applicable standard, thread length, chamfer condition, and whether the thread is rolled or cut after turning all influence fit and fatigue behavior. If the part must mate with a standard component, the mating standard should be identified rather than assumed.

Then look at the turned features around the thread. On custom fasteners, failures often happen at the interface between threaded and unthreaded sections. A shoulder diameter that is only slightly oversized may block assembly in a clearance hole. A sharp undercut may simplify machining but create a stress riser. A loose concentricity requirement between the thread axis and the pilot can cause wobble, uneven clamp distribution, or sealing issues in assemblies that depend on axial alignment.

Flatness and perpendicularity under the head also deserve attention when preload matters. If the bearing face is not controlled, torque can translate poorly into clamp force. On a simple commodity screw that may be tolerable; on a custom turned fastener used in electronics housings, fluid systems, lighting mounts, or precision hardware, it is often not.

Surface finish is another specification that should be tied to purpose. A sealing face, bearing journal, or visible decorative part may need a defined roughness value. Other surfaces may only need “free from burrs and sharp edges.” Calling for fine finish everywhere is common and expensive.

A practical rule on tolerances

If a dimension does not affect fit, load path, sealing, alignment, or downstream automation, question whether a tight limit is necessary. Technical reviews improve quickly when teams mark critical-to-function dimensions directly on the drawing or in a specification note. That gives suppliers a clear basis for process planning and gauge selection.

Material selection is not just about strength

Material choice for turned fasteners is often narrowed too early to a simple carbon steel versus stainless steel discussion. In reality, selection should balance mechanical demand, corrosion environment, machinability, finishing route, galvanic compatibility, and cost stability.

Carbon steels remain common where strength and cost matter, especially if plating or coating provides adequate protection. But the coating system must be considered as part of the material decision, not after it. Zinc-based finishes, black oxide, phosphate, or more specialized coatings each change the corrosion profile and may affect thread fit through added thickness. If hydrogen embrittlement is a concern for hardened steel fasteners, post-process controls and project-specific standards need close review.

Stainless grades are frequently selected to avoid coating dependence, but stainless is not a single answer. Austenitic grades are widely chosen for corrosion resistance and general-formability needs, while some martensitic or precipitation-hardening families may be evaluated when higher hardness or strength is required. The tradeoff is that corrosion behavior, galling tendency, and machinability can differ significantly by grade and condition. In threaded assemblies, galling risk should never be treated as an afterthought, especially where repeated installation is expected.

Brass, aluminum, and engineering alloys also appear in custom turned fasteners for electrical conductivity, weight reduction, appearance, or compatibility with softer mating materials. Those choices can work well, but only if load, wear, and environmental exposure are realistic. A turned brass insert screw may machine beautifully and assemble easily, yet be the wrong choice for cyclic mechanical loading. An aluminum fastener may meet mass targets but need careful thread engagement design to avoid stripping.

The overlooked interaction between material, process, and tolerance

A material callout cannot be separated from how the part will be made and finished. Some alloys machine cleanly and hold fine tolerances with stable tool life. Others tend to generate burrs, distortion, or inconsistent surface finish, especially on slender geometries. Heat treatment can introduce dimensional change. Plating adds thickness. Passivation does not usually change dimensions in the same way plating does, but it still belongs in the documented process flow.

This is why a drawing that specifies very tight thread-related dimensions while also requiring an unspecified coating often creates disputes later. The supplier may ask whether limits apply before or after finish. That is not a trivial question. For external threads in particular, coating buildup can affect assembly feel and gauge results. If the fastener must pass a defined GO/NO-GO thread inspection after finishing, that requirement should be explicit.

How to communicate requirements without overloading the drawing

Many technical teams know what they want but distribute it across emails, marked samples, and separate quality notes. That slows sourcing and increases interpretation gaps. A better approach is to keep the drawing authoritative, then use a compact part specification or supplier quality appendix for items such as raw material traceability level, inspection plan, cosmetic standards, packaging controls, and any market-specific restrictions.

For decision-making, ask whether the supplier can answer these questions clearly before quotation is finalized:

• Which dimensions are critical to assembly, and how will they be measured?
• Does the proposed material match the required corrosion and load environment, or is it only a machining convenience?
• Will finishing or heat treatment shift dimensions enough to require process compensation?
• Are any features difficult to hold consistently at production volume rather than sample quantity?
• What standards govern threads, material, and inspection acceptance?

These are not purchasing formalities. They are early indicators of whether a supplier understands custom turned hardware as a functional part, not just a machine shop item.

Common specification mistakes that create avoidable risk

One recurring mistake is choosing a material by name recognition rather than service condition. Stainless gets selected where plated alloy steel would perform better mechanically, or hardened steel gets specified where corrosion exposure and maintenance access make it a poor long-term choice.

Another is applying tight limits to every turned diameter while leaving thread quality, surface treatment, or underhead geometry underdefined. In fastener assemblies, the underdefined features often drive field problems more than the tightly controlled ones.

A third is failing to specify the inspection state. If dimensions are checked pre-plating but the part is assembled post-plating, the inspection result may be technically correct and practically useless.

And then there is the sample trap: approving parts from a short prototype run without confirming that the same tolerance capability holds at production volumes, across tool wear cycles, material lot variation, and finishing batches. This is exactly where market intelligence platforms such as Global Supply Review become useful in a broader sourcing workflow. The value is not only finding factories, but understanding how process capability, documentation quality, and supply-chain consistency affect decision confidence before the order scale increases.

What a good specification package usually includes

For most custom turned fastener projects, a robust package usually includes a controlled drawing, full thread definition, exact material grade, any required mechanical property range, finish or coating requirements, critical feature identification, and acceptance criteria for burrs, edges, and visual condition. If traceability, compliance declarations, or destination-market restrictions matter, those should be requested early rather than added after tooling and process planning are complete.

There is no universal “best” tolerance or material for metric custom CNC turned fasteners. The right answer depends on mating conditions, duty cycle, environment, finish, and the level of production repeatability the project needs. What is universal is this: the more precisely you connect design intent to manufacturable, inspectable requirements, the fewer surprises you will face in quotation review, pilot approval, and field performance.

If the part is still in evaluation, the next useful step is usually not asking for a lower unit price. It is confirming which dimensions are truly critical, whether the chosen material still makes sense after finishing and assembly conditions are considered, and which standards will be used to judge acceptance. That is where better sourcing decisions usually start.
