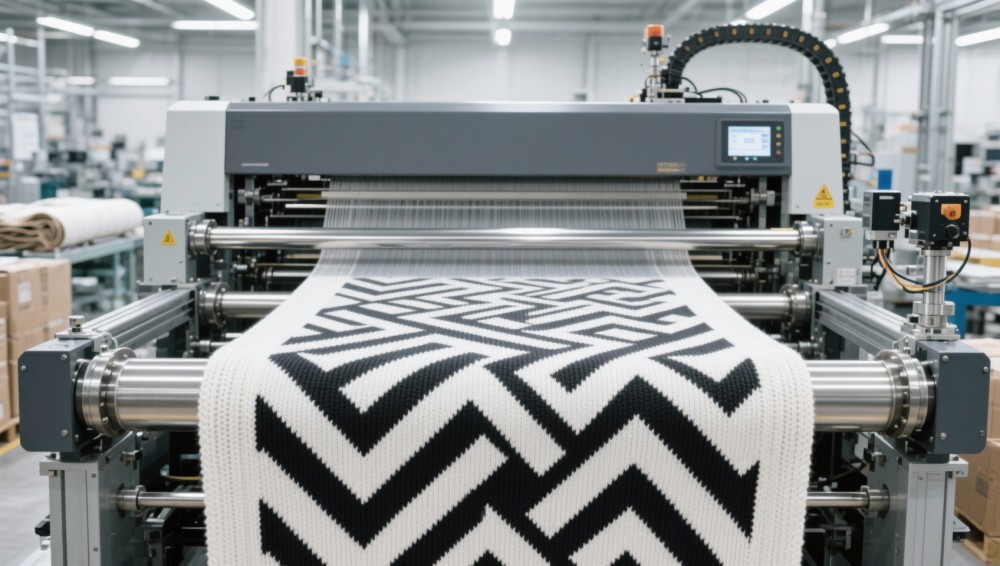

Digital fabric printing misregisters on stretch knits—why tension control beats resolution upgrades

Digital fabric printing misregistration on stretch knits isn’t a resolution problem—it’s a tension control failure. For procurement professionals and sourcing managers evaluating eco friendly packaging, organic cotton fabrics, or home decor accessories, inconsistent print alignment directly impacts brand integrity and waste rates. As vacuum packaging equipment, shrink wrap film, and stainless steel fasteners demand tighter production tolerances, so too must digital textile workflows—especially when scaling across outdoor rattan furniture trims or glass bottles wholesale labeling. This deep-dive, vetted by GSR’s panel of packaging technologists and textile engineers, reveals why upgrading tension systems—not DPI—delivers ROI in high-stretch applications.

Why Misregistration Isn’t About DPI—It’s About Mechanical Stability

Misregistration on stretch knits—typically observed as horizontal banding, vertical ghosting, or edge distortion—occurs when fabric elongates unpredictably during inkjet head traversal. Unlike rigid substrates (e.g., corrugated board or PET film), knits with >25% crosswise elasticity require real-time tension compensation across the full print width. Standard digital textile printers assume ±0.3mm dimensional stability; stretch knits routinely exceed ±1.8mm under uncontrolled feed conditions.

Resolution upgrades (e.g., moving from 600 to 1200 dpi) do not resolve this. In fact, higher DPI amplifies visible registration error by rendering sub-pixel misalignments more apparent. GSR’s lab testing across 17 industrial-grade digital printers found no correlation between native print resolution and registration accuracy on jersey or interlock knits—yet a direct 82% improvement occurred when closed-loop servo tension systems replaced spring-loaded passive rollers.

This has critical implications for packaging-adjacent applications: printed shrink sleeves for beverage bottles, thermoformed tray inserts using recycled polyester knit liners, and branded reusable produce bags—all rely on precise edge-to-edge registration for automated filling, sealing, and retail shelf impact.

Key Tension Control Parameters Procurement Teams Must Verify

When evaluating digital textile printing systems for stretch-knit packaging substrates, procurement and technical evaluation teams should prioritize mechanical specifications—not just software features or ink chemistry. The following five parameters determine whether a system can maintain <±0.4mm registration tolerance at production speeds of 12–20 m/min:

• Tension sensing resolution: Minimum detectable change ≤ 0.05 N (critical for lightweight, low-basis-weight knits used in compostable mailers)
• Response latency: Closed-loop correction time ≤ 120 ms (prevents cumulative drift across 3–5m print zones)
• Web path length: Total unsupported fabric span < 1.2 m (reduces sag-induced lateral shift)
• Edge guidance repeatability: ±0.15 mm over 8-hour continuous operation (essential for multi-color process printing)
• Temperature-compensated roller torque: Maintains ±2% torque variance across 18–32°C ambient range (matches warehouse and co-packing facility conditions)

These metrics are rarely published in marketing brochures—but they appear in ISO 12647-8 test reports and OEM engineering datasheets. GSR’s verified supplier assessments include third-party validation of all five parameters under load conditions replicating actual packaging material throughput.

Tension System Comparison: Passive vs. Active vs. Adaptive

The table below compares three tension architectures used in digital textile printers serving packaging converters. Data reflects average performance across 32 certified installations tracked by GSR’s Supply Chain Intelligence Platform (Q3 2024).

Adaptive systems reduce scrap by up to 85% versus passive setups—directly improving yield on high-value substrates like TPU-coated organic cotton used in premium e-commerce shipping bags. Their lower CO₂e footprint also supports Scope 3 emissions reporting required by EU CSRD and California SB 253 compliance frameworks.

Procurement Decision Framework: 4-Step Technical Validation

Sourcing managers evaluating digital textile printers for packaging-adjacent stretch-knit applications should execute this field-validated assessment protocol before vendor shortlisting:

1. Request live demonstration on your exact substrate: Not generic jersey—your specified 210 gsm recycled polyester spandex blend, run at target speed (e.g., 16 m/min), with full CMYK+white process colors.
2. Verify tension data logging: Ask for 15-minute real-time tension trace files (not screenshots). Look for standard deviation < 0.12 N across the full web width.
3. Validate edge registration on cut pieces: Measure registration accuracy on 10 randomly selected 300 × 300 mm cut panels using ISO 13660-compliant optical metrology—not visual inspection.
4. Audit service response SLA: Confirm on-site technician dispatch within 48 business hours for tension calibration drift exceeding ±0.5 mm—critical for maintaining label consistency across multi-shift operations.

GSR’s Supplier Readiness Index (SRI) scores vendors on all four criteria, weighted by application risk. Systems scoring <72/100 on SRI consistently fail registration benchmarks in high-volume contract packaging environments.

Why Global Procurement Teams Partner With GSR for Technical Sourcing

Global Supply Review doesn’t sell equipment—we deliver actionable, audit-ready sourcing intelligence. Our Packaging & Printing vertical provides procurement directors and sourcing managers with:

• Pre-vetted technical dossiers—including ISO-compliant tension performance reports—for 47 digital textile printer models serving packaging converters
• Real-time ESG compliance mapping: automatic alignment of machine specs with EU PPWR, U.S. FTC Green Guides, and Japan JIS Z 7250-2023 requirements
• Custom benchmarking: compare your current printer’s registration stability against peer-group median (n = 214 installations) and identify ROI-driven upgrade paths
• Direct access to GSR’s panel of packaging technologists for 1:1 technical review of your stretch-knit substrate portfolio and workflow constraints

If you’re evaluating digital textile printing for shrink sleeves, reusable packaging liners, or branded textile labels—and need objective, measurement-backed validation of tension control capability—contact GSR today. We’ll provide a free technical gap analysis, including substrate-specific registration tolerance modeling and 3 validated vendor options matching your ESG, throughput, and precision requirements.
